  3. BRM PRO 900 – 100W
FabLab Factory pricelist

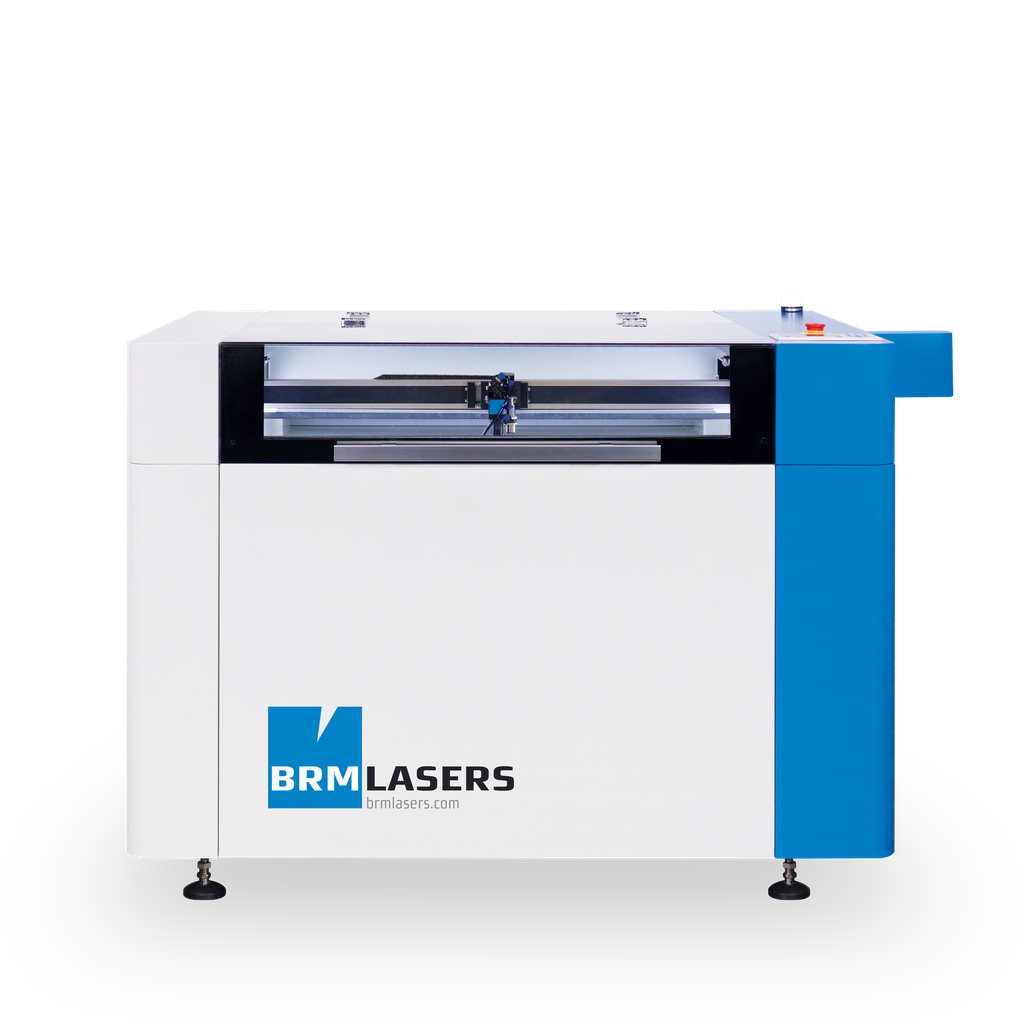

BRM PRO 900 – 100W

https://www.fablabfactory.com/web/image/product.template/1030/image_1920?unique=35c45ad

15.118,95 € 15118.95 EUR 15.118,95 € Inclusief btw 15.602,95 €

Not Available For Sale

Deze combinatie bestaat niet.

Neem contant met ons op

 Algemene voorwaarden

Delen

Technical specifications


Working area WxDxH

Maximum table load

Dimensions WxDxH

Max processing speed

Max acceleration

Motor type

Encoderprecision

Positioning system

Optics cooling

Autofocus

Shutdown delay

Air supply

Other standard accessoires

Weight

Electrical load

Connectivity

Climate

Laserclass

Laserpointer

Accuracy

Laser power

Max cutting capabilities (at optimum power)

Attached optics



900 x 600 x 200 mm

200 kg

1,750 x 1,200 x 1,200 mm

1,500 mm/s x-axis, 800 mm/s, 60 mm/s max recommended cutting speed

20,000 mm/s² x-axis, 4,000 mm/s² y-axis

Stepper motor with closed feedback loop

12 bit

Belt drive

Passively cooled

Ultrasonic autofocus

Extration switches on automatically for ever task and switches off with a delay

Air supply unit with software-controlled valve for each layer

135 W air pump | Maintenance kit | Manual

375 kg

2 x 230 VAC, 50Hz, max 2.3kW

USB-cable and network

17-23°C, 50-60%

Laser class 1

650 nm, < 5mW

0.1 mm cutting, 420 dpi engraving

100 -130 W

12-85%

50.8 mm & 101.6 mm


Premium roller rotation ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995​

Premium claw rotation ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995

Overhead camera  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995​

Filter unit  ​ ​ ​ ​ ​ ​​BRM Extractor XL Replacement filters: - Pre filter - Combined filter ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€5,495

Lens shaft set ​ ​ ​ ​ ​ ​​Choice of: - 38.1 mm - 63.5 mm - 101.6 mm  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€195

Acrylic cutting grid ​ ​ ​ ​​​These grids (400 x 600 mm) ensure reflection-free cutting ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€29.50

Work table ​ ​ ​ ​ ​ ​​Slat table ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​€334.50
