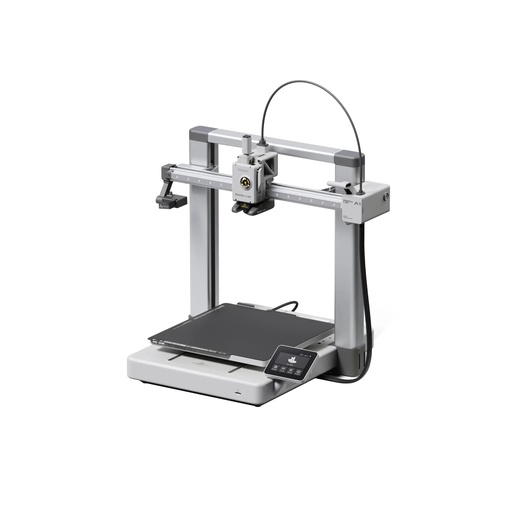

Further training: Start with Bambu Lab A1 3D Printer

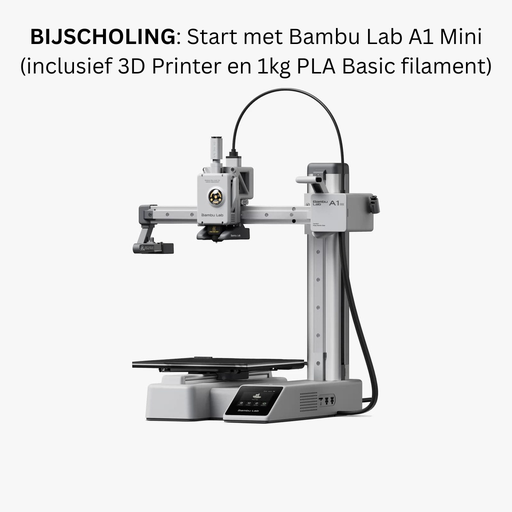

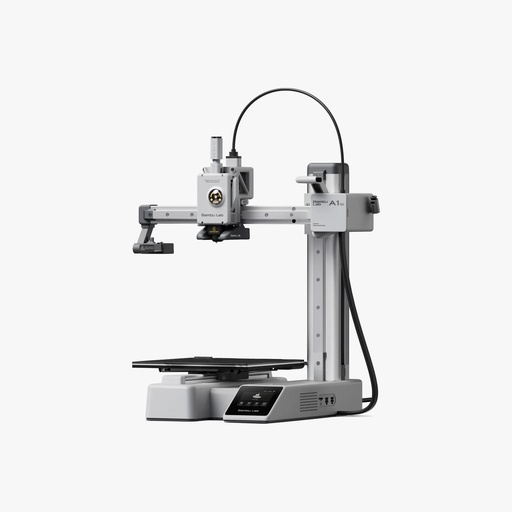

Further training: Start with Bambu Lab A1 Mini 3D Printer

Unleash your creative mind with the FLUX Ador diode laser! Explore endless possibilities, from colorful materials to metal engraving, with the optional 2W Infrared Module.

Flagship model: X1E Combo (with AMS)

Spécifications techniques

Zone de travail L x P x H
1600 x 1000 x 180 mm

Charge maximale de la table
80 kg

Dimensions L x P x H
2200 x 1600 x 1320 mm

Vitesse d'usinage max.
800 mm/s axe X, 600 mm/s axe Y, 40 mm/s vitesse de coupe maximale recommandée*

Accélération max.
15 000 mm/s² axe X, 600 mm/s² axe Y

Type de moteur
Moteur pas à pas

Précision de l'encodeur
12 bits

Système de positionnement
Courroie crantée

Refroidissement du miroir
Refroidissement passif

Poids
425 kg

Charge électrique
2x 230 VCA, 50 Hz, max. 2,3 kW

Possibilités de connexion
Câble USB et réseau

Climat
17-23 °C, 50-60 %

Classe laser
Classe laser 1

Pointeur laser
650 nm, <5 mW

Précision
Découpe 0,1 mm, gravure 420 dpi*

Puissance laser
100-130 W OU 130-160 W

Capacités de découpe max. (à puissance optimale)
12-85 %

Optique fournie
50,8 mm

Autres équipements standard
Pompe à air 135 W | Kit d'entretien | Manuel d'utilisation

Technical specifications

Work area L x D x H

1300 x 900 x 180mm

Maximum table load

80 kg

Dimensions W x D x H

2000x1500x1320mm

Max machining speed.

800 mm/s X axis, 600 mm/s Y axis, 40 mm/s maximum recommended cutting speed*

Max. acceleration

15,000 mm/s² X axis, 2000 mm/s² Y axis

Type of engine

Stepping motor

Accuracy of the encoder

12 bits

Positioning system

Sproped beat

Mirror cooling

Passive cooling

Weight

350 kg

Electric charge

2x 230 VCA, 50 Hz, max. 2.3 kW

Connection options

USB and network cable

Climate

17-23°C, 50-60%

Laser class

Laser class 1

Laser pointer

650 nm, <5 mW

Accuracy

Cutting 0.1 mm, engraving 420 dpi*

Laser power

100-130 W OR 130-160 W

Cutting capacities max. (at optimal power)

12-85%

Optics provided

50.8 mm

Other standard equipment

135 W Air Pump | Maintenance Kit | User Manual

Ask a quote for transport cost

The Pro 1300 is versatile because you can easily process small and large material. This format is perfect for medium to large workspaces.
