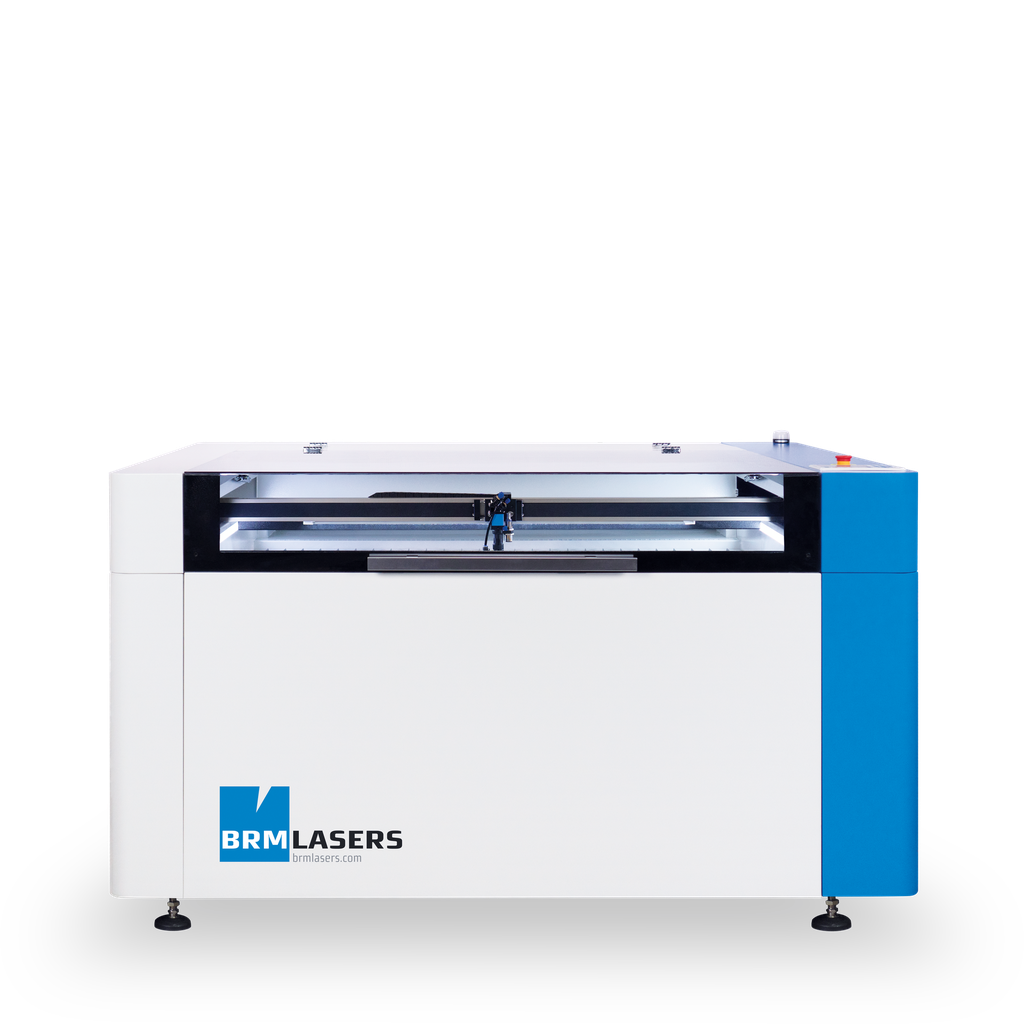

BRM PRO 1300

The Pro 1300 is versatile because you can easily process small and large material. This format is perfect for medium to large workspaces.

Highlights

• Work faster, deliver faster
• Ultrasonic autofocus
• 2-year full warranty
• Dustfree guiding rails
• Software-controlled air valve
• Laser class 1, a.o. due to Siemens safety components


Technical specifications

Work area WxDxH ​ ​ ​1300 x 900 x 200 mm
Maximum table load ​ ​ ​200 kg
Size WxDxH ​ ​ ​ ​ ​2000 x 1500 x 1200 mm
Weight ​ ​ ​ ​ ​ ​650 kg
Electrical load ​ ​ ​ ​2x 230 VAC, 50 Hz, max. 2,3 kW
Possible connections ​ ​USB-cable and network
Climate ​ ​ ​ ​ ​ ​17-23°C, 50-60%
Laser class ​ ​ ​ ​ ​Laser class 1
Air supply ​ ​ ​ ​ ​Air supply unit with software-controlled valve per layer
Autofocus ​ ​ ​ ​ ​Ultrasonic autofocus
Red pointer ​ ​ ​ ​ ​Added to the laser beam’s path
Turn-off delay ​ ​ ​ ​Timed exhaust shutdown controlled by the machine
Maximum speed ​ ​ ​ ​1500 mm/s X-axis, 800 mm/s Y-axis,
​ ​ ​ ​ ​ ​ ​ ​60 mm/s maximum recommended cutting speed*

Maximum acceleration ​ ​20.000 mm/s² X-axis, 4000 mm/s² Y-axis
Accuracy ​ ​ ​ ​ ​ ​0,1 mm cutting, 420 dpi engraving*
Laser power ​ ​ ​ ​ ​90-100 W OR 130-150 W
Optimal power load ​ ​ ​12-85%
Life expectancy ​ ​ ​ ​≥ 10.000 hours at optimal power load
Maximum cutting capabilities

(at optimal power load) ​ ​90-100 W: 15 mm acrylic, 6 mm MDF
​ ​ ​ ​ ​ ​ ​ ​130-150 W: 20 mm acrylic, 8 mm MDF

Included optics ​ ​ ​ ​50,8 mm and 101,6 mm
