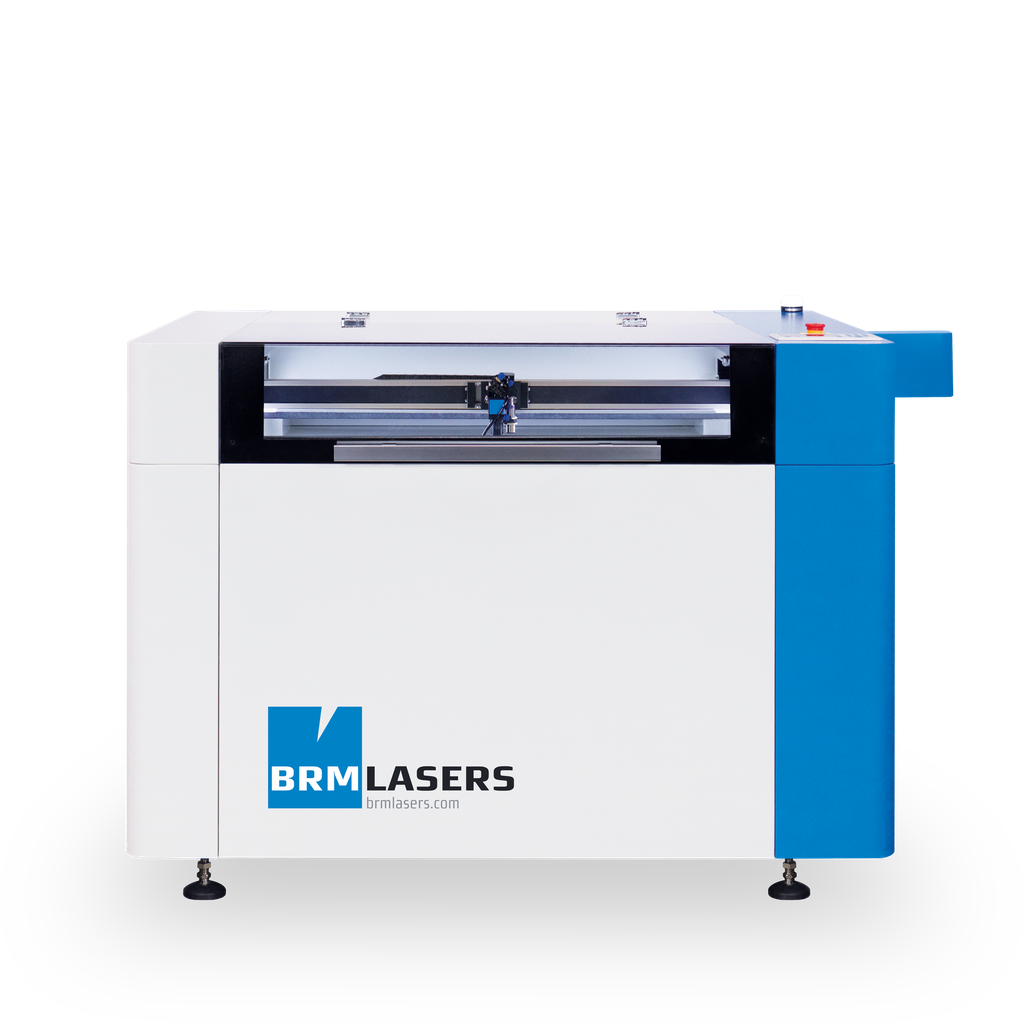

BRM PRO 900 - 100W

https://www.fablabfactory.com/web/image/product.template/1030/image_1920?unique=0bfcc42

15,118.95 € 15118.95 EUR 15,118.95 € Tax Included 15,602.95 €

Not Available For Sale

This combination does not exist.

Contact Us


Terms and Conditions

Share

Features

Every Pro is delivered with our BRM quality checklist and includes all the components needed to get started and use the machine as optimally as possible: A water chiller, air pump, autofocus, red pointer, software-controlled air valve, timed exhaust shutdown, non-filtering fume extractor, honeycomb and slat table, LightBurn software, maintenance set, our manual and two lenses.

Download installation guide

Technical specifications


Working area WxDxH

Maximum table load

Dimensions WxDxH

Max processing speed


Max acceleration

Motor type

Encoder precision

Positioning system

Optics cooling

Autofocus

Shutdown delay

Air supply

Other standard accessoires


Weight

Electrical load

Connectivity

Climate

Laserclass

Laserpointer

Accuracy

Laser power

Max cutting capabilities (at optimum power)

Attached optics



900 x 600 x 200 mm


200 kg

1,750 x 1,200 x 1,200 mm

1,500 mm/s x-axis, 800 mm/s, 60 mm/s max recommended cutting speed

20,000 mm/s² x-axis, 800 mm/s² y-axis

Stepper motor with closed feedback loop

12 bit

Belt drive

Passively cooled

Ultrasonic autofocus

Extration switches on automatically for ever task and switches off with a delay

Air supply unit with software-controlled valve for each layer


135 W air pump | Maintenance kit | Manual


375 kg

2 x 230 VAC, 50Hz, max 2.3kW

USB-cable and network

17-23°C, 50-60%

Laser class 1

650 nm, < 5mW

0.1 mm cutting, 420 dpi engraving

100 - 130 W

12 - 85%

50.8 mm & 101.6 mm


Premium roller rotation ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995​

Premium claw rotation ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995

Overhead camera  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995​

Filter unit  ​ ​ ​ ​ ​ ​​BRM Extractor XL Replacement filters: - Pre filter - Combined filter ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€5,495

Lens shaft set ​ ​ ​ ​ ​ ​​Choice of: - 38.1 mm - 63.5 mm - 101.6 mm  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€195

Acrylic cutting grid ​ ​ ​ ​​​These grids (400 x 600 mm) ensure reflection-free cutting ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€29.50

Work table ​ ​ ​ ​ ​ ​​Slat table ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€334.50
