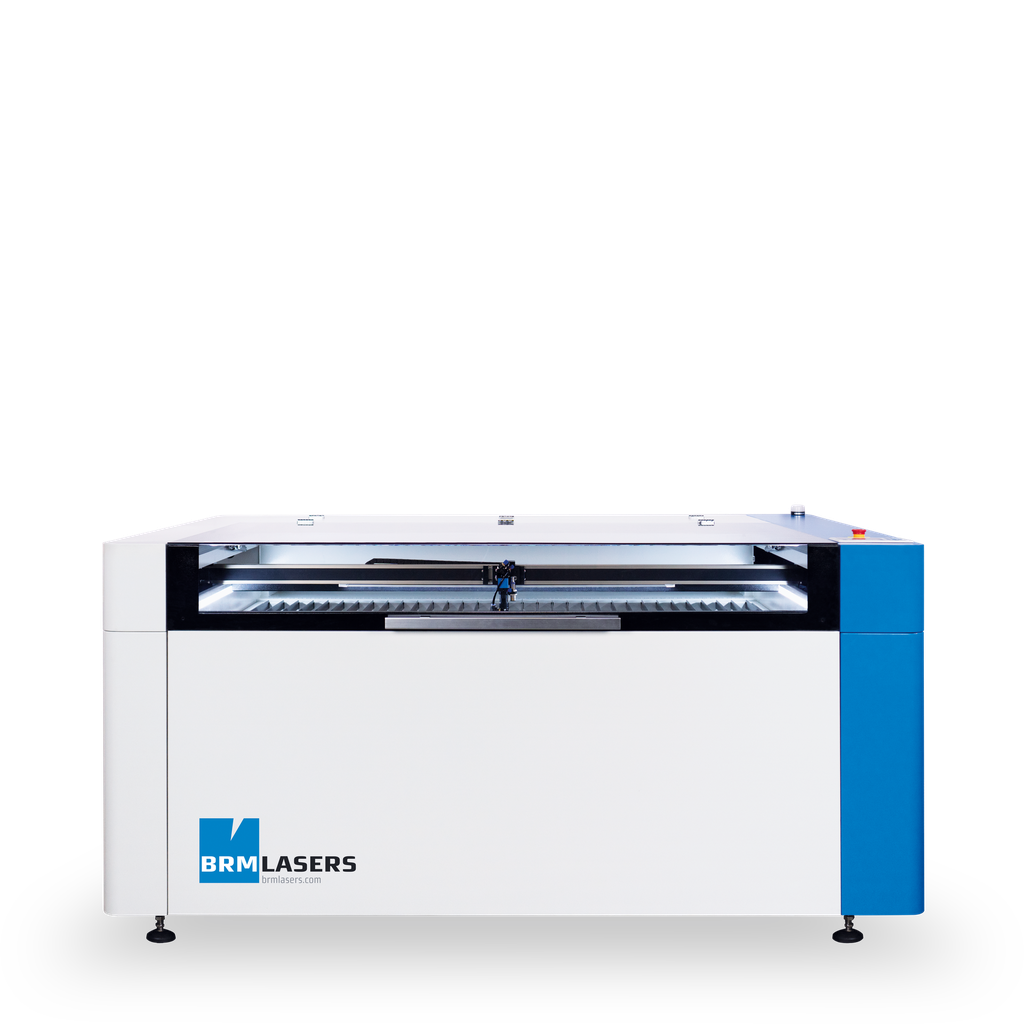

BRM PRO 1600

https://www.fablabfactory.com/web/image/product.template/1032/image_1920?unique=49824fb

Ask a quote for transport cost

17,901.95 € 17901.95 EUR 17,901.95 € Tax Included

Not Available For Sale

  • CO2 Laser Power

This combination does not exist.

Contact Us


Terms and Conditions

Share

Features

The Pro 1600 combines the safety of a closed laser with the size of a production machine.
It is therefore ideal for large workspaces and production companies. ​

​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​           Download installation guide



Technical specifications


Working area WxDxH

Maximum table load

Dimensions WxDxH

Max processing speed

Max acceleration

Motor type

Encoder precision

Positioning system

Optics cooling

Autofocus

Shutdown delay

Air supply


Other standard accessoires

Weight

Electrical load

Connectivity

Climate

Laserclass

Laserpointer

Accuracy

Laser power

Max cutting capabilities (at optimum power)

Attached optics



1,600 x 1,000 x 200 mm

200 kg

2,200 x 1,600 x 1,200 mm

1.500 mm/s x-axis, 800 mm/s, 60 mm/s max
reccomended cutting speed

20.000 mm/s² x-axis, 800 mm/s² y-axis

Stepper motor with closed feedback loop

12 bit

Belt drive

Passively cooled

Ultrasonic autofocus

Extration switches on automatically for ever task and switches off with a delay


Air supply unit with software-controlled valve for each layer


135 W air pump | Maintenance kit | Manual

575 kg

2 x 230 VAC, 50Hz, max 2.3kW

USB-cable and network

17-23°C, 50-60%

Laser class 1

650 nm, < 5mW

0.1 mm cutting, 420 dpi engraving

100 -130 W / 130 - 160 W

12-85%

50.8 mm & 101.6 mm


Premium roller rotation ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995​

Premium claw rotation ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995

Overhead camera  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€995​

Filter unit  ​ ​ ​ ​ ​ ​​BRM Extractor XL Replacement filters: - Pre filter - Combined filter ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€5,495

Lens shaft set ​ ​ ​ ​ ​ ​​Choice of: - 38.1 mm - 63.5 mm - 101.6 mm  ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€195

Acrylic cutting grid ​ ​ ​ ​​​These grids (400 x 600 mm) ensure reflection-free cutting ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€29.50

Work table ​ ​ ​ ​ ​ ​​Slat table ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​€334.50
